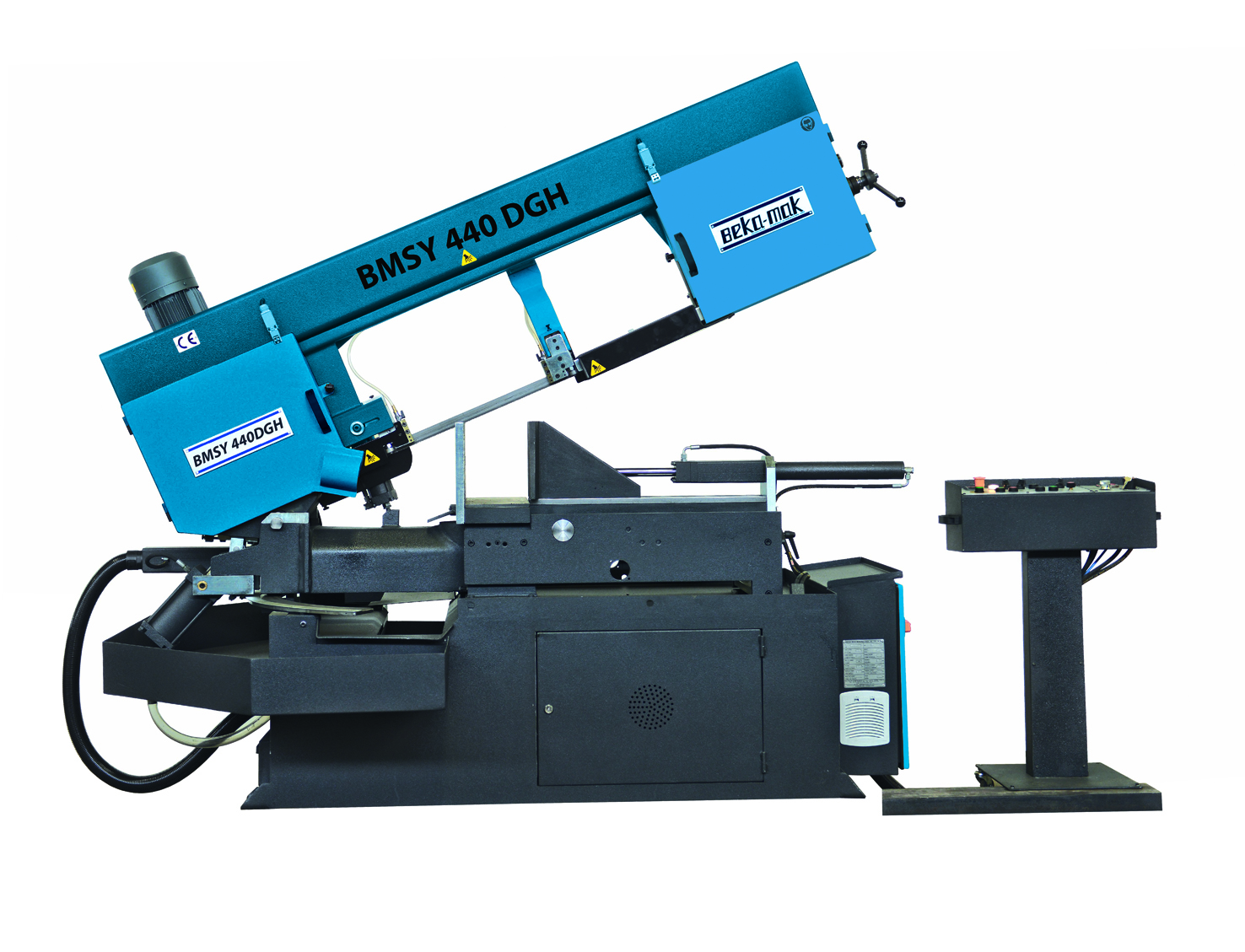

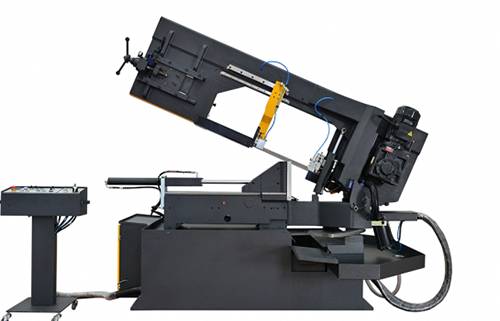

WMSY-440 DGH

Product Description

Machine description :
• semi-automatic double miter for cutting profiles and
  Solid material in steel and non-ferrous material and excellent price-performance ratio
• robust constructed monoblock saw frame
• manually swiveling saw frame with hydraulic clamping for optimal
  Miter (not BMSY 270 DGH )

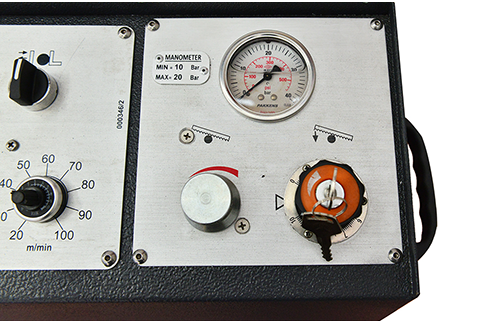

• miter on mobile control panel digitally readable (not BMSY 270 DGH )

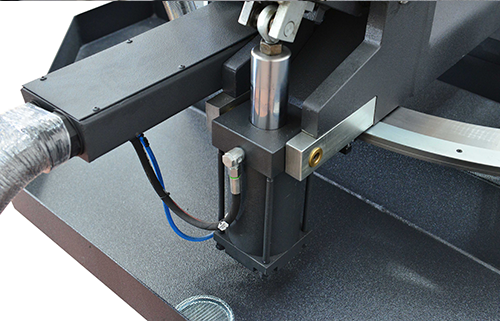

• Hydraulic clamping of the horizontal vise
• automatic saw frame raising on the cut end
• continuously adjustable belt speed 34-68 m / min BMSY 270 DGH /
  20-100 m / min BMSY DGH 360 /440 DGH
• Sensitive cutting pressure regulation function of the material properties
• hydraulic-mechanical belt tension
• tape guide with hard metal pads sheets and rolls
• thermal overload protection and no-volt release
• Automatic shut-off after cut end
• automatic belt break protection Driven

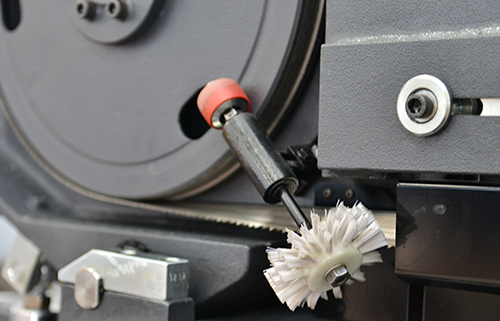

• Chip brush on impeller ( not BMSY 270 DGH )

Standard Features
Optional Features
Technical Details
PARAMETER UNIT UNIT
Round Cutting Capacity mm 440
Flat Cutting Capacity mm 610 x 440
Square Cutting Capacity mm 440
+30° Round Cutting Capacity mm 440
+30° Flat Cutting Capacity mm 500 x 440
+30° Square Cutting Capacity mm 440
+45° Round Cutting Capacity mm 410
+45° Flat Cutting Capacity mm 410 x 440
+45° Square Cutting Capacity mm 410
+60° Round Cutting Capacity mm 320
+60° Flat Cutting Capacity mm 250 x 440
+60° Square Cutting Capacity mm 250
-30° Round Cutting Capacity mm 440
-30° Flat Cutting Capacity mm 500 x 440
-30° Square Cutting Capacity mm 440
-45 Round Cutting Capacity mm 410
-45° Flat Cutting Capacity mm 410 x 440
-45° Square Cutting Capacity mm 410
-60° Round Cutting Capacity mm 320
-60° Flat Cutting Capacity mm 285 x 440
-60° Square Cutting Capacity mm 285

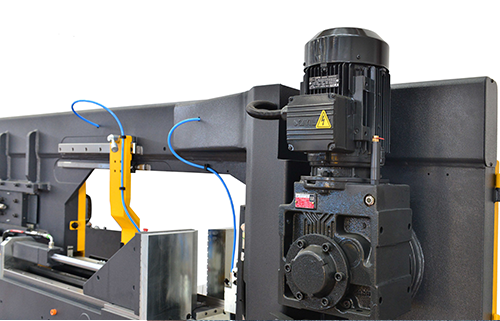

Main Drive Motor kW 3
Hydraulic Motor kW 0,55
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 – 100
Band Dimensions mm 5200x34x1,1
Working Height mm 860
Weight kg 1540
Length mm 2800
Width mm 1210
Height mm 1870
